Description The Beckhoff CX5130-0125 is a DIN rail-mounted Industrial Embedded PC powered by an Intel Atom® E3827 dual-core 1.75 GHz processor. It includes 4 GB of onboard DDR3 RAM, dual Ethernet interfaces, and expandable storage via CFast and microSD card slots, offering a compact and efficient platform for industrial control applications. Technical Specifications Condition New/Never Used Surplus Brand Beckhoff Category Industrial Computers Part Number CX5130-0125 Subcategory Embedded PC Mounting DIN rail Processor Intel Atom® E3827 Clock Speed 1.75 GHz CPU Cores 2 (TwinCAT 3: 40) Memory 4 GB DDR3 RAM (soldered, not expandable) Storage Options CFast card slot and microSD card slot (cards not included) Ethernet Ports 2 x RJ45 (10/100/1000 Mbit/s) Display Interface 1 x DVI-I USB Ports 4 x USB 2.0 Optional Interfaces Expansion slot available Cooling Passive (fanless operation) Control Software TwinCAT 2 and TwinCAT 3 runtimes Diagnostic LEDs Power, TC, Flash, 2x Bus status Real-Time Clock Integrated, battery-backed Power Supply 24 V DC Protection Class IP20 Operating Temperature 0…55°C Storage Temperature -25…+85°C Relative Humidity 95%, non-condensing Compliance CE, UL certified Weight 3.00 lbs (approx. 1.36 kg) Information About CX5130-0125 The CX5130-0125 belongs to Beckhoff’s CX5000 Embedded PC series, designed for efficient machine control and automation environments. Equipped with an Intel Atom® E3827 processor, it combines robust computing performance with energy efficiency in a compact DIN-rail housing. The unit operates passively without fans, ensuring silent operation and reduced maintenance. Integrated with 4 GB DDR3 memory and expandable flash storage options, it supports flexible data management for demanding real-time applications. With TwinCAT 2 and TwinCAT 3 compatibility, the CX5130-0125 acts as both a PLC and motion controller, integrating seamlessly into EtherCAT-based automation systems. Key Features: Powerful Dual-Core Processing: Features an Int

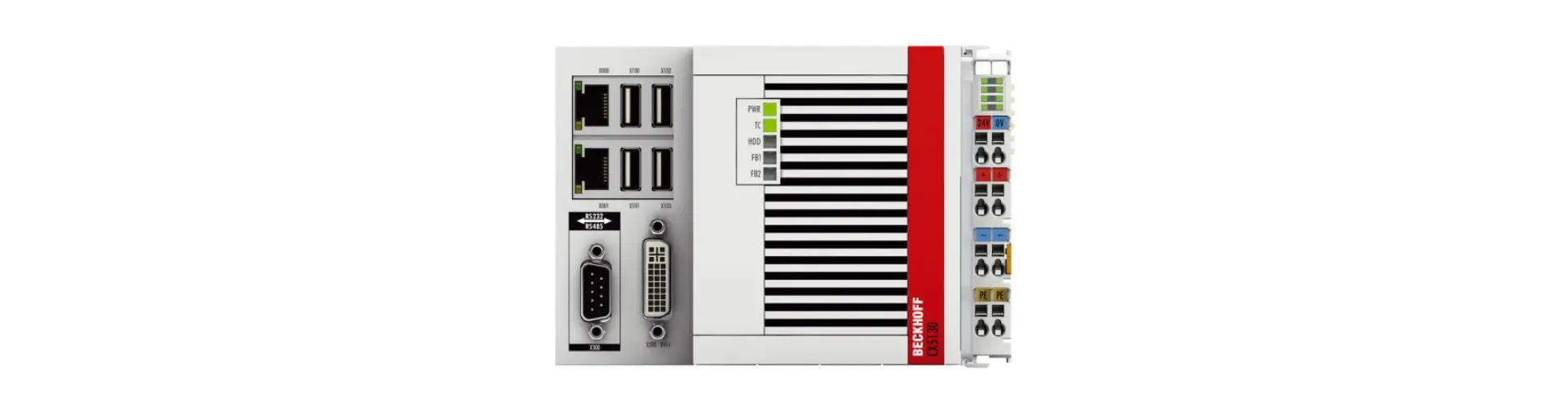

CX5130-0125 | Beckhoff Embedded PC, Intel Atom E3827 1.75 GHz, 4 GB DDR3 RAM
$1,684.00
Description The Beckhoff CX5130-0125 is a DIN rail-mounted Industrial Embedded PC powered by an Intel Atom® E3827 dual-core 1.75 GHz processor. It includes 4 GB of onboard DDR3 RAM, dual Ethernet interfaces, and expandable storage via CFast and microSD card slots, offering a compact and efficient platform for industrial control applications. Technical Specifications Condition New/Never Used Surplus Brand Beckhoff Category Industrial Computers Part Number CX5130-0125 Subcategory Embedded PC Mounting DIN rail Processor Intel Atom® E3827 Clock Speed 1.75 GHz CPU Cores 2 (TwinCAT 3: 40) Memory 4 GB DDR3 RAM (soldered, not expandable) Storage Options CFast card slot and microSD card slot (cards not included) Ethernet Ports 2 x RJ45 (10/100/1000 Mbit/s) Display Interface 1 x DVI-I USB Ports 4 x USB 2.0 Optional Interfaces Expansion slot available Cooling Passive (fanless operation) Control Software TwinCAT 2 and TwinCAT 3 runtimes Diagnostic LEDs Power, TC, Flash, 2x Bus status Real-Time Clock Integrated, battery-backed Power Supply 24 V DC Protection Class IP20 Operating Temperature 0…55°C Storage Temperature -25…+85°C Relative Humidity 95%, non-condensing Compliance CE, UL certified Weight 3.00 lbs (approx. 1.36 kg) Information About CX5130-0125 The CX5130-0125 belongs to Beckhoff’s CX5000 Embedded PC series, designed for efficient machine control and automation environments. Equipped with an Intel Atom® E3827 processor, it combines robust computing performance with energy efficiency in a compact DIN-rail housing. The unit operates passively without fans, ensuring silent operation and reduced maintenance. Integrated with 4 GB DDR3 memory and expandable flash storage options, it supports flexible data management for demanding real-time applications. With TwinCAT 2 and TwinCAT 3 compatibility, the CX5130-0125 acts as both a PLC and motion controller, integrating seamlessly into EtherCAT-based automation systems. Key Features: Powerful Dual-Core Processing: Features an Int
100% Secure Checkout
Free Shipping Over $100
Customer Satisfaction
International Shipping
Product Description
