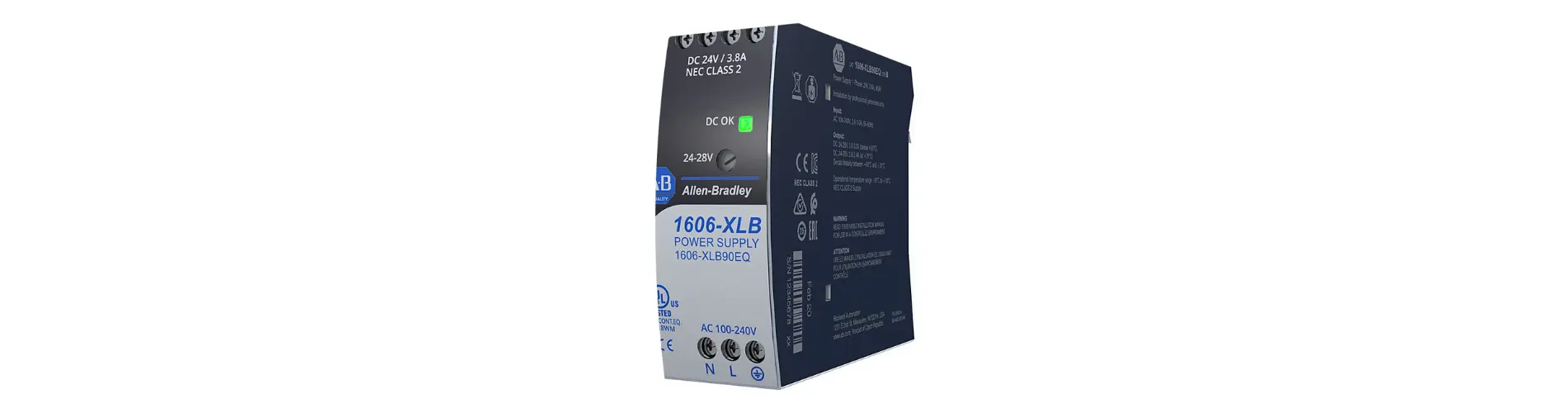

The 1606-XLB60E is a compact, DIN-rail mountable switched-mode power supply from Allen-Bradley’s Bulletin 1606-XLB basic series. It is designed to provide highly efficient and reliable 24V DC power for various industrial applications where space and cost-effectiveness are key considerations.
Core Specifications
- Power Rating: 60 Watts.
- Output Voltage: 24V DC (adjustable between 24–28V).
- Output Current: 2.5 Amps.
- Input Voltage: 100–240V AC (single-phase).
- Efficiency: High-performance design reaching up to 92.3%.
Key Technical Features
- Compact Footprint: With a width of only 36 mm, this power supply maximizes space on standard 35 mm DIN rails within control cabinets.
- Thermal Performance: Operates reliably in temperatures ranging from -10°C to +70°C (with power derating above 55°C).
- Industrial Durability: Specifically engineered for an extended mean time between failures (MTBF), ensuring long-term stability for industrial control systems.
- Secure Installation: Features robust screw-type terminals for vibration-resistant wiring and is UL 508 listed for industrial control equipment.
- Lightweight Design: Weighs only 0.545 lbs (approx. 225g), making it easy to integrate into light-duty or mobile panels.
