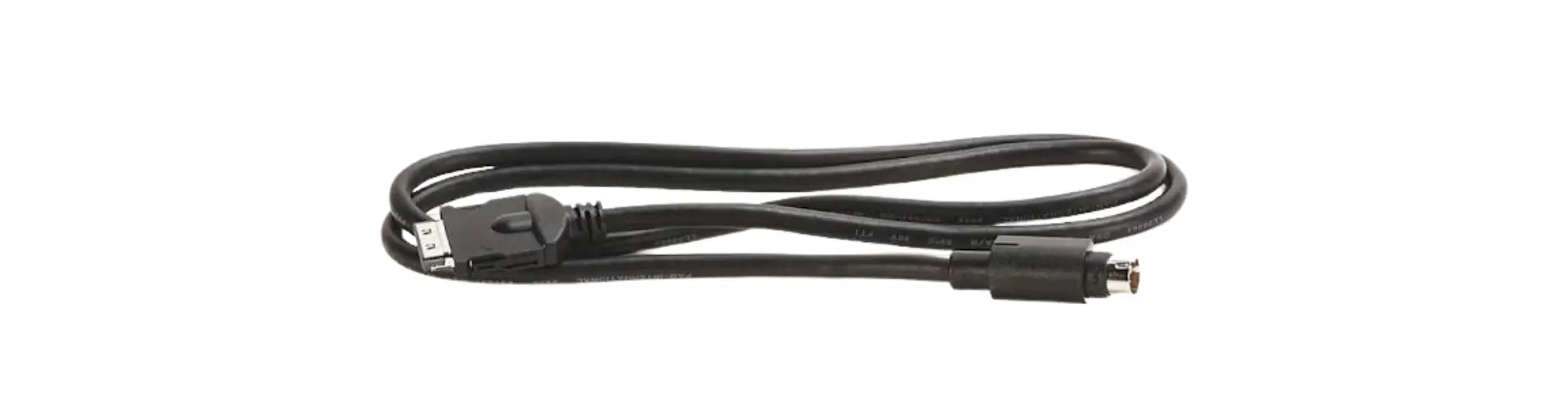

The 20-HIM-H10 is a specialized 1-meter Remote HIM Cable designed to provide reliable connectivity between Allen-Bradley PowerFlex drives and Human Interface Modules (HIM). It is specifically engineered to support the 20-HIM-A6 when used as a handheld device for drive configuration and monitoring.
Core Specifications
- Part Number: 20-HIM-H10.
- Cable Length: 1 meter (approx. 3.3 feet).
- Configuration: 8-pole connector.
- Compatibility: Works with PowerFlex 7-Class (70, 700, 700H, 700S, 700L) and 750-Series (753, 755) drives.
- Standard Compliance: CUL, GOST, KC, and UL certified.
Key Technical Features
- Handheld Functionality: Enables the 20-HIM-A6 interface to be used as a mobile, handheld tool, allowing technicians to move around the drive cabinet while performing adjustments.
- Signal Integrity: Built to maintain high-quality communication between the drive’s control port and the interface module, even in electrically noisy industrial environments.
- Installation Flexibility: The 1-meter length offers the necessary reach for comfortable handheld operation without excessive cable clutter.
- Industrial Durability: Part of the proven PowerFlex accessory line, designed to withstand the rigorous demands of industrial automation and motor control applications.
