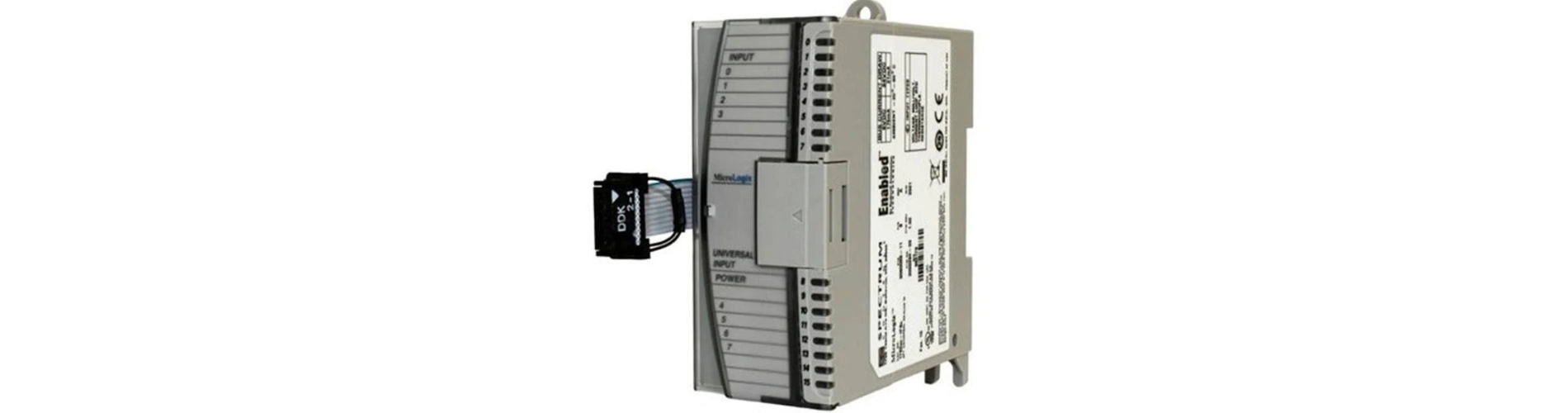

The 1762SC-IF8U is a versatile 8-channel Universal Analog Input Module manufactured by Spectrum Controls for the Allen-Bradley MicroLogix platform. It is designed to provide high-density, mixed-signal handling, allowing a single module to interface with a wide variety of industrial sensors.
Core Specifications
- Compatibility: Designed for MicroLogix 1100, 1200, and 1400 controllers (1762 expansion bus).
- Input Channels: 8 universal channels.
- Input Types: Supports Voltage, Current, Thermocouple, RTD, and Resistance.
- Resolution: 16-bit precision.
- Update Time: 20–495 ms (depending on the selected filter).
Key Technical Features
- Multi-Sensor Flexibility: Eliminates the need for separate modules by supporting various ranges, including:
- Voltage/Current: 0–10V, ±10V, 4–20mA, etc.
- Thermocouple: Types J, K, T, B, E, R, S, N, and C.
- RTD: Pt100/200/500/1000, Ni, Cu, and more.
- Configurable Filtering: Features four selectable input filters (4 Hz to 470 Hz) to improve measurement accuracy and reduce noise in electrically “dirty” environments.
- Space-Efficient Design: Allows for up to eight voltage/current/TC inputs or four RTD/resistance inputs, providing significant I/O density for compact control cabinets.
- Industrial Durability: Rated for operating temperatures up to 60 °C and built to withstand vibration levels from 10 to 500 Hz.
- Easy Integration: Fully compatible with standard MicroLogix expansion ports and supports both DIN-rail and panel mounting.
