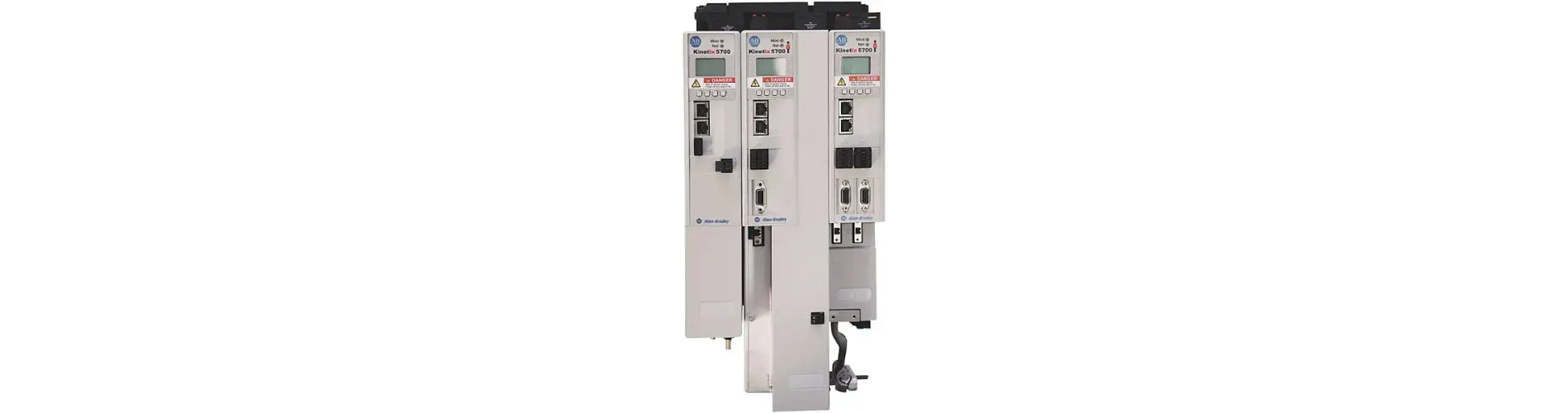

2198-S086-ERS3 | Allen-Bradley Kinetix 5700 Single-Axis Servo Drive, 43A 30kW

Description The Allen-Bradley 2198-S086-ERS3 is a Kinetix 5700 single-axis inverter module engineered for high-power, high-performance motion control applications. Delivering up to 29.7 kW continuous output power and 43 A continuous output current, it is designed for demanding servo systems requiring fast response, precision regulation, and seamless EtherNet/IP connectivity. Technical Specifications Condition New/Never Used Surplus Brand Allen-Bradley Category Servo Drives / Motion Control Part Number 2198-S086-ERS3 Series Kinetix 5700 Module Type Single-Axis Inverter Module Continuous Output Power 29.7 kW Continuous Output Current 43 A (nom), 60.8 A (0-peak) Peak Output Current 86 A (continuous), 121.6 A (0-peak) Internal Capacitance 560 µF Inrush Current 4 A at 33V Torque Value 22–40 lb-in (2.5–4.5 N·m) PWM Frequency 4 kHz Loop Bandwidth 100 Hz / 400 Hz Ethernet Interface Supported (EtherNet/IP) Feedback Ports Motor Feedback (MF), Universal Feedback (UFB) Input DC Current 45.7 A DC (required) Power Dissipation 190–475 W depending on load % Operating Temperature 0–50 °C Storage Temperature -40–70 °C Humidity 5–95% non-condensing Altitude Rating Up to 1500 m without derating Vibration 2G Shock 15G Module Width 85 mm Dimensions (H×W×D) 9.92 × 3.35 × 17.0 in (252 × 85 × 433 mm) Weight ~5.21 kg (11.5 lb) Manufacturer Rockwell Automation Information About 2198-S086-ERS3 The 2198-S086-ERS3 is part of the Kinetix 5700 servo drive family, offering high scalability for medium to large machine designs. It features 100 Hz and 400 Hz current/velocity loop bandwidths with a 4 kHz PWM rate, enabling smooth, accurate motion performance. The module supports both motor and auxiliary feedback through MF and UFB connectors and integrates with EtherNet/IP for synchronized, high-speed motion control. Built to operate in industrial environments, the drive provides reliable thermal performance, wide operating temperature tolerance, and high vibration/shock resistance. Its 560 µF internal
